Description
FEATURES:
- 9.0″ WSVGA Display with Capacitive Touch Panel
- Universal Shape
- Wired & Wireless Apple CarPlay
- Android Auto™ & Android Auto™ Wireless
- Wireless Mirroring for iPhone / Android
- 13 Band EQ & Digital Time Alignment
- Rear View Camera Input with Parking Guidelines
- Built-in Bluetooth
- 2 Preouts 2.5V & Subwoofer Out (Mono)
- Short Chassis
Smartphone Connectivity

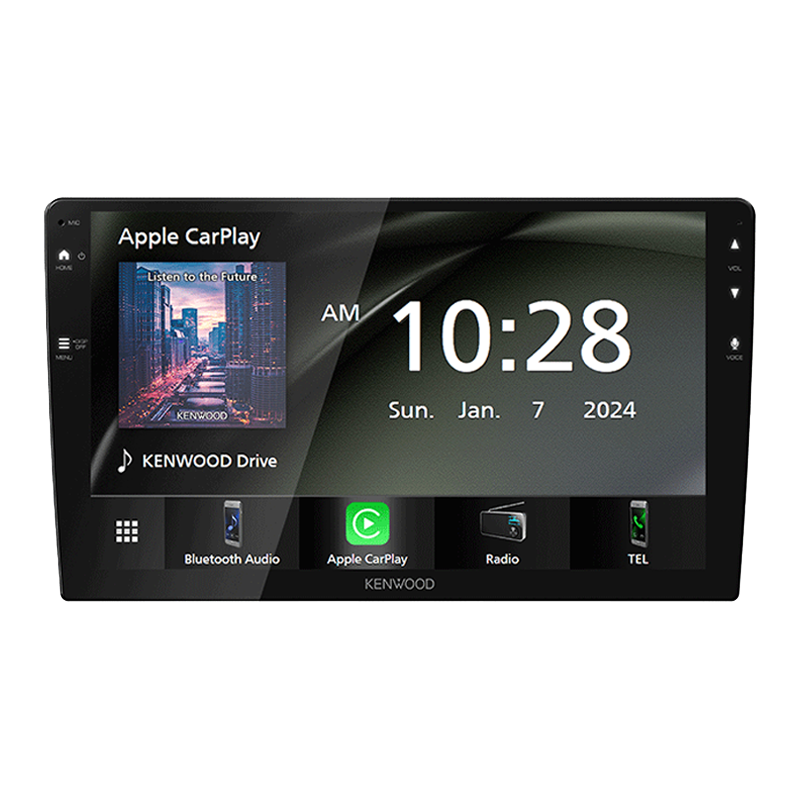

Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

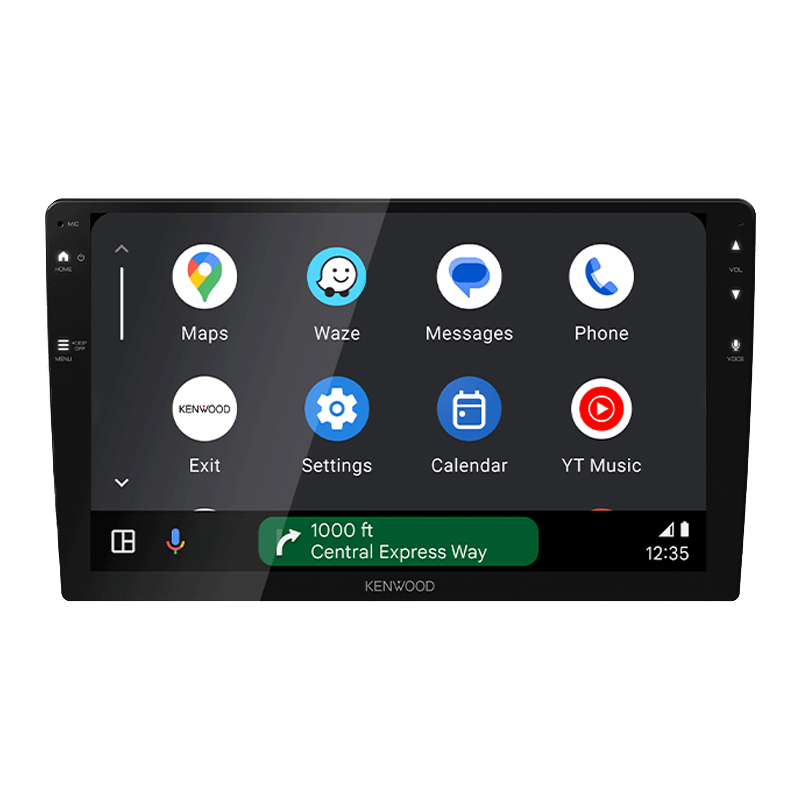

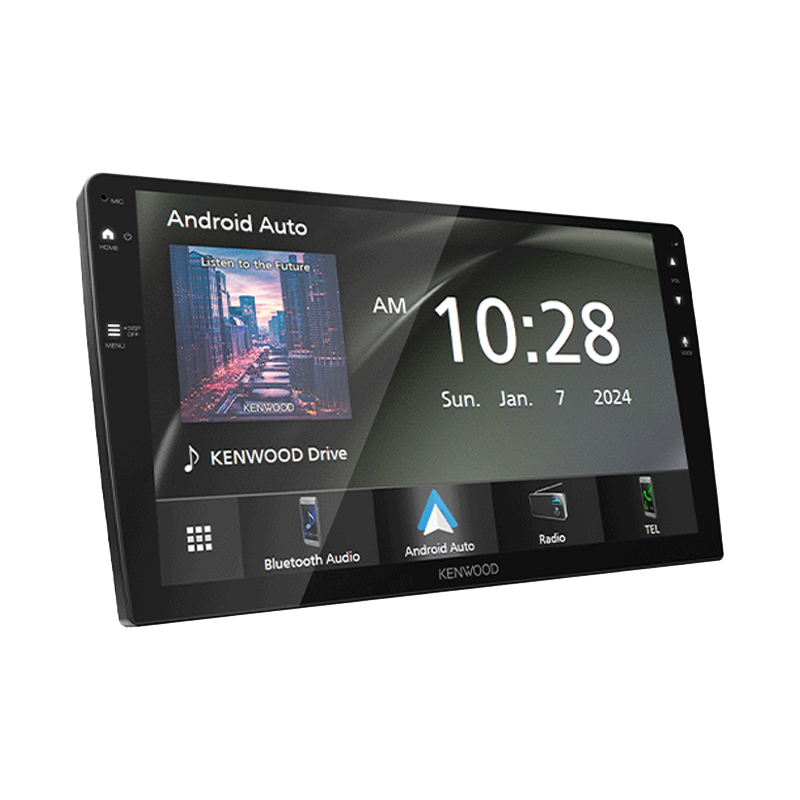

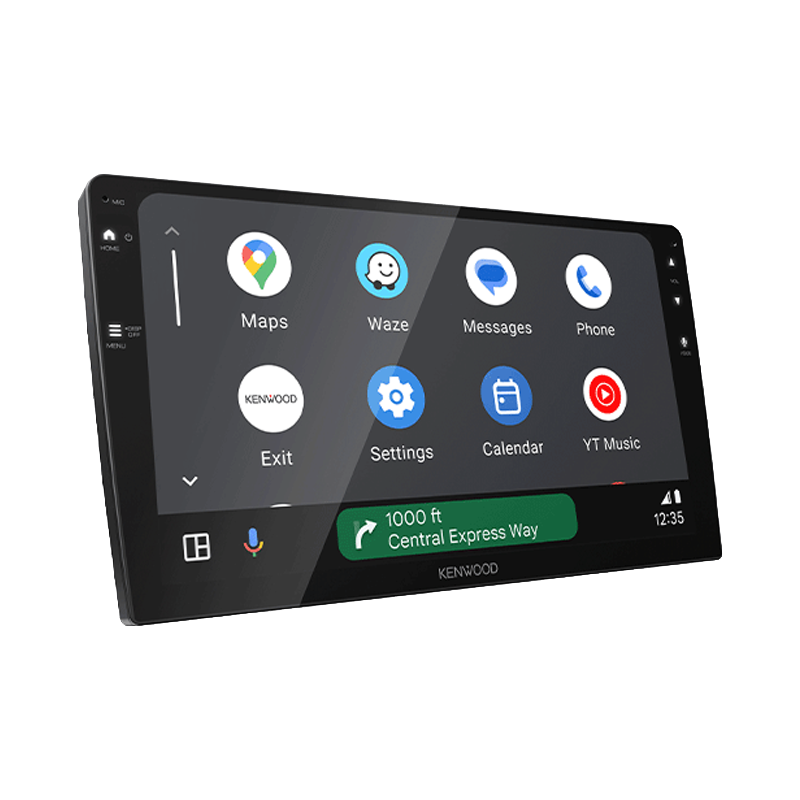

Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
Wireless Mirroring for smartphone
By installing the “MirrorApp+” app, your smartphones seamlessly displayed on the receiver’s screen without cable. You can enjoy a variety of apps such as Waze, YouTube, and Instagram. Touch control is possible from both screen and Smartphone.
*Selected smartphones only
Streaming Music
Listen to popular music applications and music stored on your device with basic audio controls
The Best Audio Experiences
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Playable Video & Audio Files
You can play back from USB devices audio and video files compressed in various formats.
Safe Driving
Rear View Camera Input with Parking Guidelines
An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.
Additional Features
WSVGA LCD Display
The WSVGA display reproduces approximately 1.6 times higher resolution than the conventional WVGA display. You can enjoy finely detailed expression of color gradients and lifelike visuals in dramas and movies, enhancing your viewing experience.
Convenient and Easy-to-Use Capacitive Touch Panel
Provides a high contrast ratio, crystal clear display and vivid text. Easy to use widgets provide access to information screens with a swipe.
Direct OEM Steering Remote Control
The receivers can be installed in most Japanese and Korean vehicles easily.
Click here to learn more

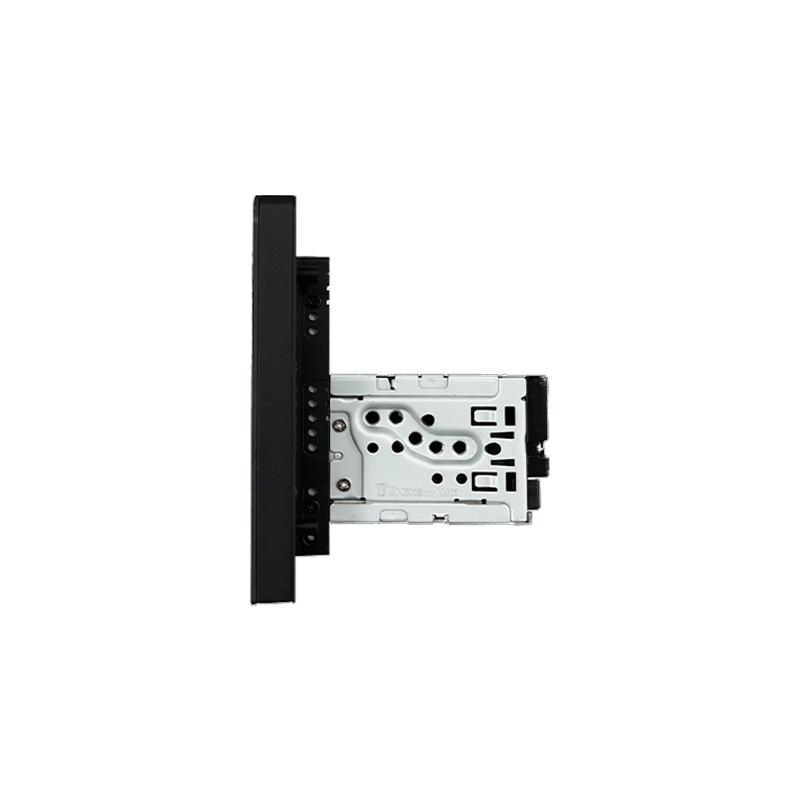

Short Chassis Design
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.
Specifications:
| Unit | Monitor Section | Picture size | 9 inches (diagonal) wide | |
|---|---|---|---|---|
| W x H | ||||
| Display system | TN LCD panel | |||
| Drive system | TFT active matrix system | |||
| Number of pixels | 1,843,200 | |||
| 1024H x 600V x RGB | ||||
| Effective pixels | 99.99% | |||
| Pixel arrangement | RGB striped arrangement | |||
| Back lighting | LED | |||
| USB I/F Section | USB Standard | USB2.0 High Speed | ||
| Connector | Type-A | |||
| File System | FAT32/ exFAT | |||
| Maximum Power Supply Current | DC5V(DC logo) 2.1A | |||
| D/A Converter | 24 Bit | |||
| Audio Decoder | MP3/ WMA/ WAV/ AAC/ FLAC | |||
| Video Decoder | MPEG1/ MPEG2/ MPEG4/ H.264/ MKV | |||
| Wi-Fi Section | Frequency response | 192k Sampling | 20 – 20,000 Hz | |
| 96k Sampling | 20 – 20,000 Hz | |||
| 48k Sampling | 20 – 20,000 Hz | |||
| 44.1k Sampling | 20 – 20,000 Hz | |||
| IEEE Standard | 802.11 a/ n/ ac | |||
| Frequency Range | 5GHz (5.745～5.825GHz) | |||
| Channels | 149ch | |||
| Auto(149,153,155,157,161ch) | ||||
| Transfer rates (MAX) | 11a:54 Mbps / 11b: 11 Mbps | |||
| 11g: 54 Mbps / 11n:150 Mbps / 11ac:433 Mbps | ||||
| Bluetooth Section | Bluetooth Specification Version | Bluetooth V5.0 | ||
| Frequency | 2.402 – 2.480 GHz | |||
| RF Output Power (E.I.R.P.) | +0.7 dBm (AVE), Power Class 2 | |||
| Maximum Communication range | Line of sight approx.10m | |||
| Audio Codec | SBC / AAC | |||
| Multi Profile Support | Multi Profile | |||
| Profile | HFP(Hands Free Profile) 1.7 | |||
| SPP(Serial Port Profile) 1.2 | ||||
| A2DP(Advanced Audio Distribution Profile) 1.3 | ||||
| AVRCP(Audio/Video Remote Control Profile) 1.6 | ||||
| PBAP(Phonebook Access Profile) 1.2 | ||||
| FM | Frequency range (Frequency step) | 87.5 – 108 MHz (50kHz) | ||
| Usable sensitivity | 16.2dBf | |||
| S/N:30dB | 1.8μV/75Ω | |||
| Frequency response(±3.0dB) | 30Hz – 14kHz | |||
| S/N Ratio(dB) | 50dB (MONO) | |||
| Stereo separation | 35 dB (1 kHz) | |||
| AM | Frequency range (Frequency step) | 531 – 1611 kHz (9kHz) | ||
| Usable sensitivity | 99μV (40 dBμ) | |||
| Video | Color system of external video input | NTSC/ PAL | ||
| Rear view camera input level (RCA) | 1 Vp-p / 75 Ω | |||
| Video Output level (RCA) | 1 Vp-p / 75 Ω | |||
| Audio | Maximum Power (Front&Rear) | 50Wx4 | ||
| Full Bandwidth Power (Front&Rear) (at less than 1%THD) | 22Wx4 | |||
| Output frequency band | 20 – 20,000 Hz | |||
| Preout level (V) | 2.5 V / 10 kΩ | |||
| Preout impedance (Ω) | 1.4 kΩ | |||
| Speaker Impedance (Ω) | 4 – 8 Ω | |||
| Equalizer | 13 Band | |||
| Band | Frequency | 62.5/ 100/ 160/ 250/ 400/ 630/ 1k/ 1.6k/ 2.5k/ 4k/ 6.3k/ 10k/ 16k Hz | ||
| Level | -09 – +09 (-9dB – +9dB) | |||
| Q | – | |||
| HPF | Frequency | Through/ 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz | ||
| Slope | -6/ -12/ -18/ -24 dB/Oct. | |||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |||
| LPF | Frequency | 30/ 40/ 50/ 60/ 70/ 80/ 90/ 100/ 120/ 150/ 180/ 220/ 250 Hz/ Through | ||
| Slope | -6/ -12/ -18/ -24 dB/Oct. | |||
| Gain | -8/ -7/ -6/ -5/ -4/ -3/ -2/ -1/ 0 dB | |||
| General | Operating voltage | 12V DC car battery | ||
| Main Unit Installation size W x H x D(w/o sleeve) | 229 x 130.5 x 100.8mm | |||
| Weight | Main unit | 1.33 kg | ||
