Kenwood DMX9724XDS

$1,899.00

Kenwood DMX9724XDS

$1,899.00

Monitor with Receiver, 10.1″ Digital Multimedia Receiver

  • 14 days easy returns
  • Order yours before 11:30am for same day dispatch
  • 12 months warranty
Guaranteed Safe Checkout

Description

FEATURES:

  • 10.1″ High Definition Monitor with Capacitive Touch Panel
  • Floating Panel Mechanism with 4-way Position Adjustment
  • Android Auto™ & Android Auto™ Wireless
  • Wired and Wireless Apple CarPlay
  • High-Resolution Audio Wireless
  • Wireless Mirroring for Android
  • 4 Camera Inputs
  • HD Front & Rear Camera Ready
  • Built-in DAB+ Digital Radio Tuner and Built-in Bluetooth
  • 3 Preouts 5V / Digital Optical Output

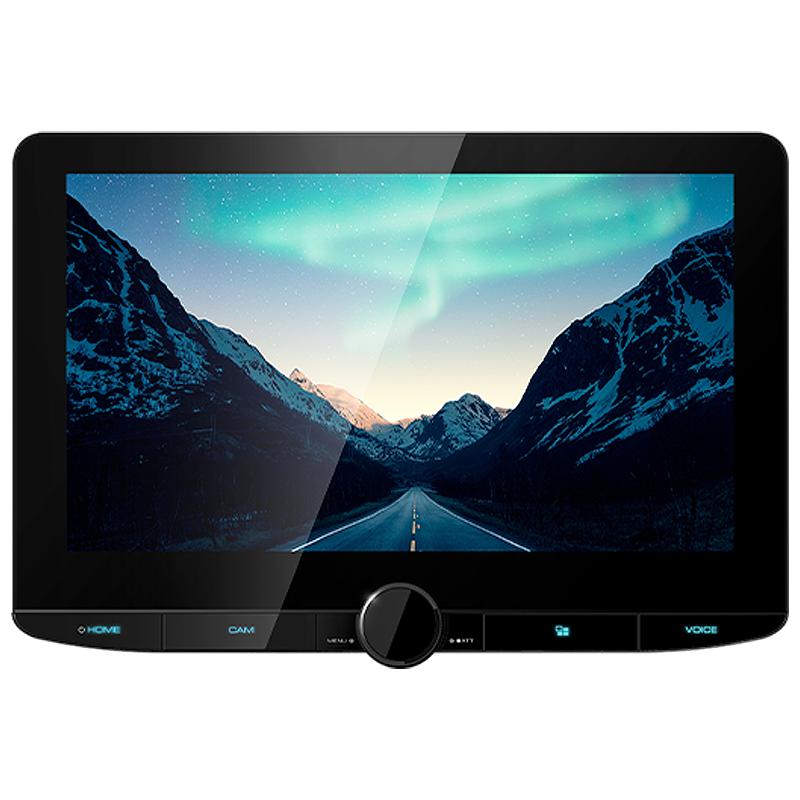

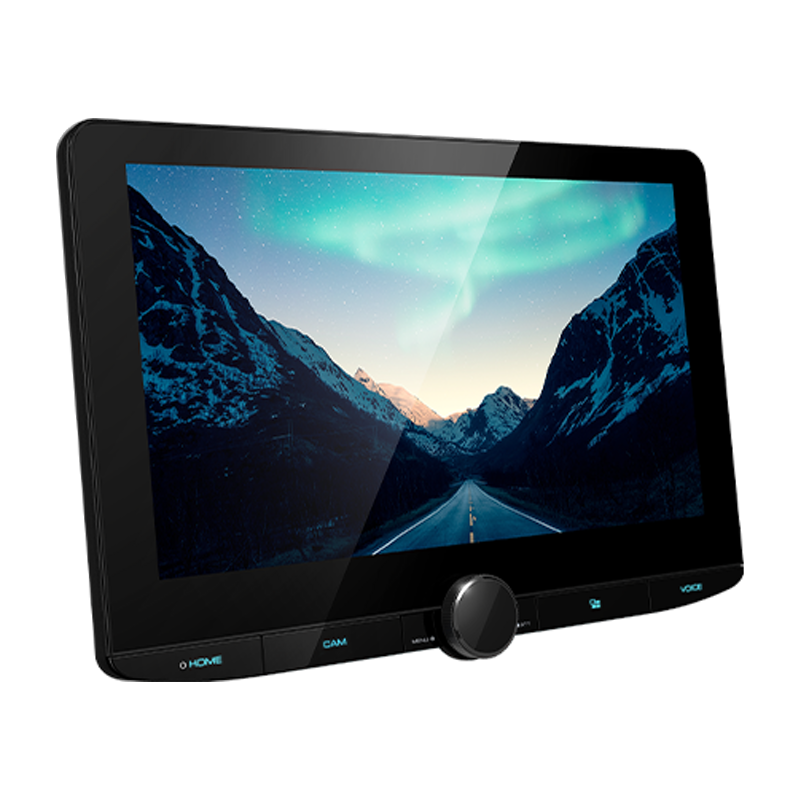

Large 10.1 inch HD Display



Provides room for more information that is large and easy to see with just a glance.



High Definition
— Overwhelming Power of Expression —

HD 1280×720 DISPLAY

10.1″ Display features an electrostatic capacitive touch panel and HD 1280 x 720 pixel LCD panel with high luminance white LED backlight and superior wide viewing angles.



BONDED OPTICAL DISPLAY
— VIVID COLORS WITH HIGH CONTRAST —



Optical Clear Adhesive (OCA) is added between the touch screen and the LCD to eliminate the air layer and suppress light reflection and glare. This feature enhances the contrast and brightness and maintains the visibility of the display in various environments.



WIDER VIEWING ANGLE
— BEAUTIFUL FROM ANY SEAT —

The AAS display technology of the LCD panel assures you a wider viewing angle of 170° for both horizontal and vertical directions. Together with the protective film which minimizes reflection and glare from sunlight, you can enjoy clear images even from the passenger or back seats.





FLOATING PANEL MECHANISM WITH
4-WAY POSITION ADJUSTMENT

Fully adjustable display allows you to change the depth, height, angle, and left / right for easy vehicle fitment.

Depth

2 steps ( 0 / 19mm )





Height



4 steps ( 0 / 15 / 30 / 45mm )





Tilt

-10° / +45°





Left / Right



3 steps ( -30 / 0 / +30mm )



Smartphone Connectivity



Apple CarPlay – Connect Wirelessly or via USB

Works with Apple CarPlay

Wi-Fi CERTIFIED

A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.

*Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability/#applecarplay-applecarplay

Apple CarPlay – Split Screen Support

You can view and operate both Apple CarPlay and KENWOOD source in the same screen.





Android Auto ™ – Connect Wirelessly or via USB

Works with Android Auto

Wi-Fi CERTIFIED

Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road.

*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.

*Selected mobile phones only



Android Auto – Split Screen Support

You can view and operate both Android Auto and KENWOOD source in the same screen.





Wireless Mirroring for Android

Solution for seamlessly displaying and controlling your smartphone apps on a screen without cables on select Android devices.



HDMI Mirroring for Smartphones

Display your smartphone screen or other device via an HDMI cable (and third party adapter as applicable) on the 10.1″ monitor. KCA-HD200 optional HDMI cable sold separately.



KENWOOD Portal App

Display image files stored in your iPhone or Android on the receiver’s photo frame widget and/or wallpaper.





The Best Audio Experience

High-Resolution Audio Wireless



High-Resolution Audio is high-quality sound that exceeds CD standard. High-Resolution audio captures and beautifully expresses all the details of your favorite music. Through ultra-high and low frequencies, immerse yourself in a rich and high-quality listening experience. Select KENWOOD receivers now support Hi-Resolution Audio Wirelessly via LDAC. LDAC is an audio coding technology that enables the transmission of High-Resolution Audio over a Bluetooth connection.

Hi-Res AUDIO Hi-Res AUDIO WIRELESS LDAC

*LDAC and LDAC logo are trademarks of Sony Corporation.
* “Hi-Res Audio” Logo and “Hi-Res Audio Wireless” Logo are used under license from Japan Audio Society



Parametric Equalizer

You can fine-tune advanced sound properties to achieve professional audio sound quality in your vehicle. It allows you to set parameters of Q factor, slope, frequency and gain at 14 points separately (Common: 9 / Front: 2 / Rear: 2 / Subwoofer: 1). With adjustments such as high and low shelving filters, more realistic sound can be delivered.



Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment



Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.



High Quality Audio Parts Supporting High-Resolution Audio Reproduction

To ensure the best possible sound quality, the receivers use custom-made and carefully selected parts, such as audio quality power supply capacitors, high quality coupling capacitors. These parts are further optimized through meticulous tuning of the component values and circuit paths.



Digital Optical Output

Connect your favorite DSP amplifiers to create the optimal sound space.

Playable Video & Audio Files

Audio Format Video Format

You can play back from USB devices audio and video files compressed in various formats.

Safe Driving

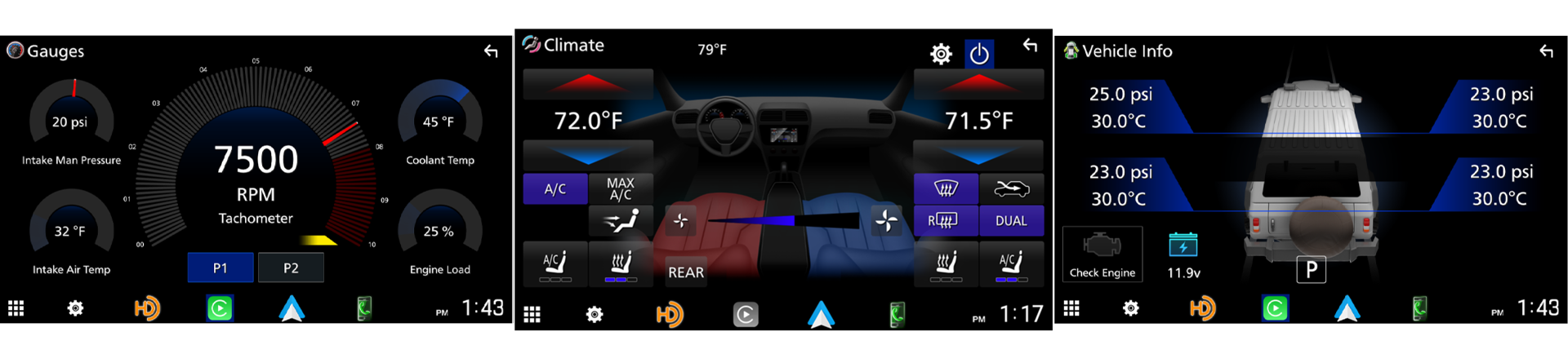

ENHANCED VEHICLE INTEGRATION

maestro

Compatible with both the Automotive Data Solutions iDatalink Maestro RR and RR2 (sold separately)* for enhanced system vehicle integration. In addition to providing the seamless factory integration experience you have become accustomed to with the RR, these models feature expanded support when connected to the RR2, including an Advanced Driver Assistance Systems (ADAS) Widget and Customizable Accessory Controls. (sold separately).

*Available features vary by vehicle



Rear View Camera Input with Parking Guidelines

An optional rear view camera enhances safety while backing up and monitoring behind your vehicle. Built-in, adjustable parking guidelines further add to its effectiveness.



HD Front / Rear Camera Input

Kenwood car audio stereo head unit multimedia receiver

The optional CMOS-740HD camera can be connected to the receiver’s front and/or rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers. The camera’s built in High Dynamic Range technology further helps to overcome the negative effects of dark or bright conditions, making it the safest front or rear camera option available.



4 Camera Inputs



To enable a smarter driving experience, receivers featuring 4 camera inputs allow for the utmost in convenience, flexibility, and safety. With 4 camera inputs, you can connect a rear camera, side (blind spot) cameras, and a KENWOOD dashboard camera (DRV-N520 sold separately).  Alternatively, 4 camera inputs can support several other configurations, including the connection of 2 side cameras, a front HD camera, and a rear HD camera (CMOS-740HD sold separately). Camera switching is available using on screen controls, or automatically for side cameras when an optional iDatalink Maestro RR is connected (supported vehicles only).



Dash Cam Link Ready

Full HD video recording is available with a DRV-N520 compact windshield mount camera that can record every event in front of you while you drive. High Dynamic Range (HDR) allows flawless recording regardless of extreme bright light or very dark conditions. With a built-in gyro sensor, if an accident occurs it will be saved in a separate portion of memory within the 8GB SD card for viewing. Additional safety and warning features can be activated to avoid frontal collisions or remind you if traffic has moved in front of you.





Additional Features

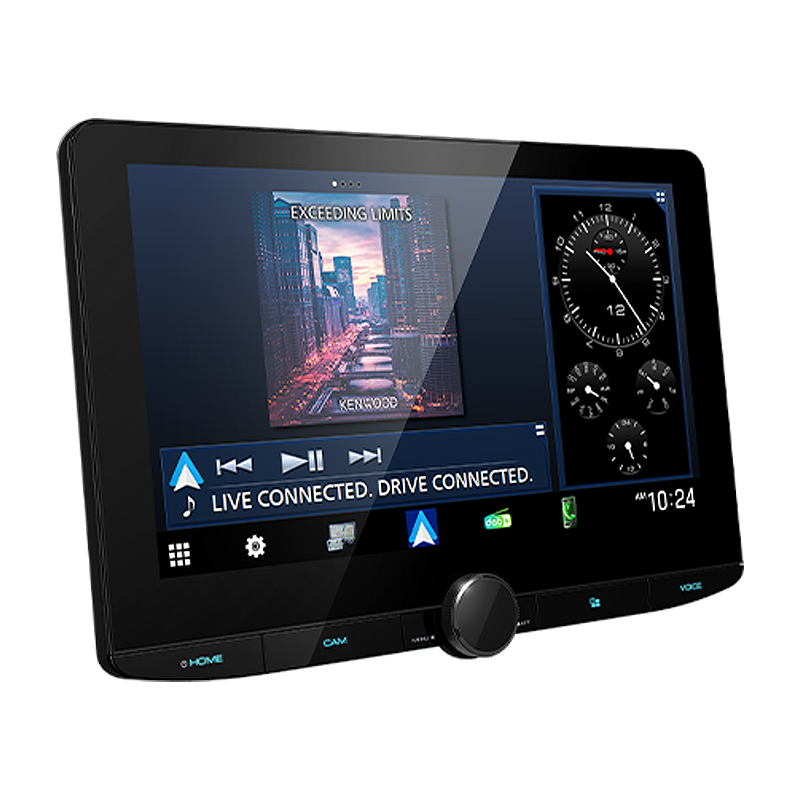

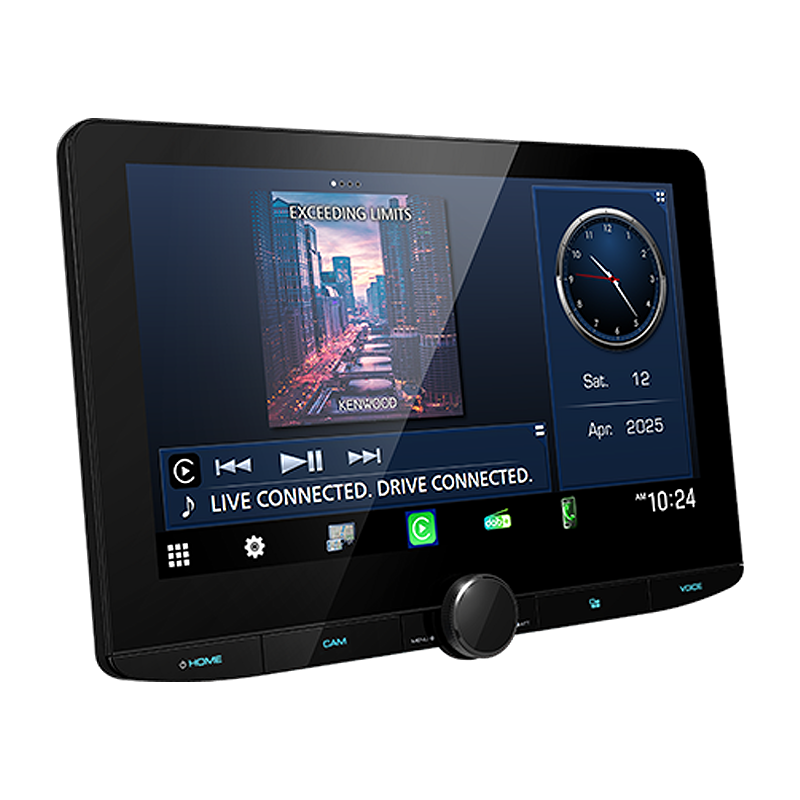

DRIVING WIDGET HOME SCREEN

The 10.1″ home screen is composed of a Driving Widget as well as a Source Control Widget overlaid on the background. You can move the Driving Widget from side to side or enlarge the Source Control Widget to optimize the screen for your intuitive operation. The Driving Widget allows selection of a clock, compass, or equalizer setting, etc., while the background allows selection of album art, audio visualizer, or photo.

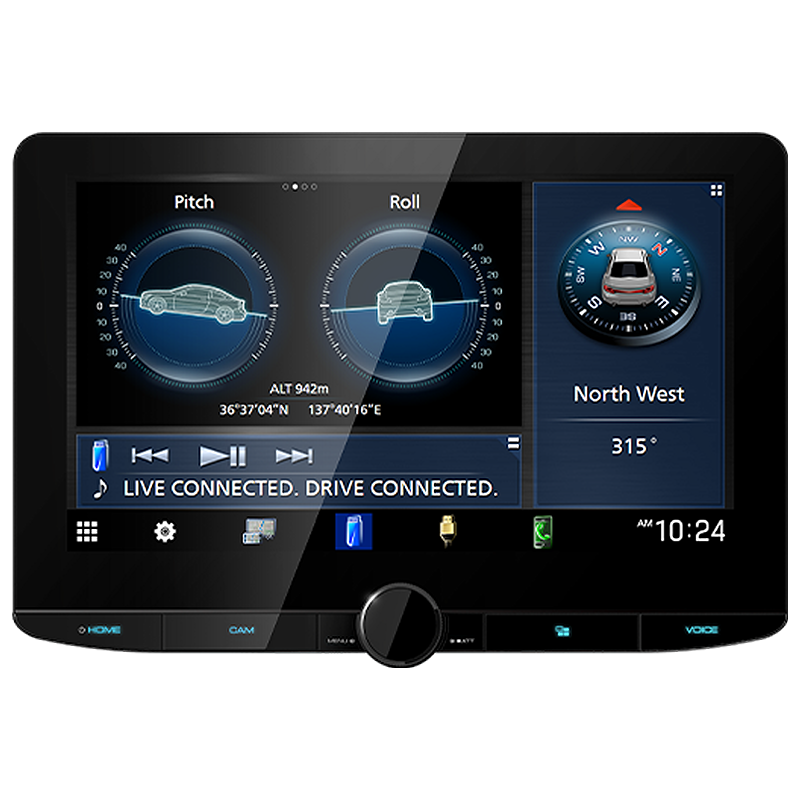

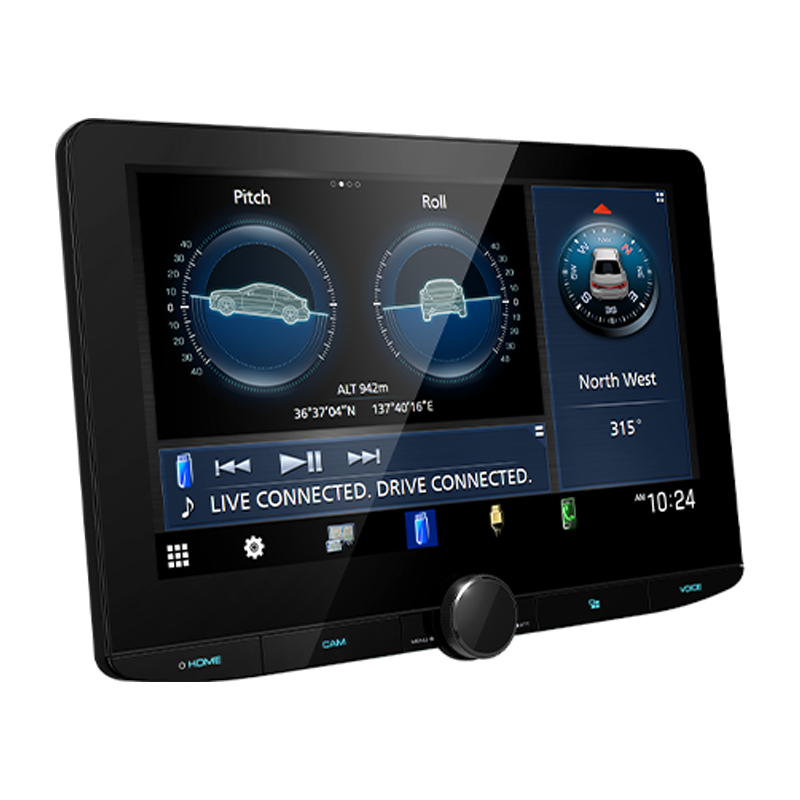

Pitch & Roll GUI

Built-in DAB+ Digital radio Tuner



USB Type-C









Specifications:

Main UnitMonitor
Section
Picture size10.1 inches(diagonal) wide
W x H223.7 x 125.8 (mm)
Display systemLCD panel
Drive systemTFT active matrix system
Number of pixels2,764,800
1280H x 720V x RGB
Effective pixels99.99%
Pixel arrangementRGB striped arrangement
Back lightingLED
USB I/F
Section
Connector TypeType-C
USB StandardUSB2.0 High Speed
File SystemFAT 16/32, exFAT, NTFS
Maximum Power Supply CurrentDC5V=3.0A
D/A Converter24/32Bit
Audio DecoderMP3 / WMA / AAC / WAV / FLAC / Vorbis
Video DecoderMPEG1/2,MPEG4 / WMV / H.264 / MKV
Frequency response
192k Sampling20 – 88,000 Hz
96k Sampling20 – 44,000 Hz
48k Sampling20 – 22,000 Hz
44.1k Sampling20 – 20,000 Hz
Total harmonic distortion 1kHz0.01%
Signal to Noise ratio98.5dB
Dynamic range89dB
Wireless Mirroring
Section
ModeSink
Copyright protectionHDCP2.2
Touch ControlUIBC
Wi-FiIEEE Standard802.11 a/b/g/n/ac
Frequency RangeDual Band ( 2.4GHz / 5GHz )
ChannelsAuto(1-11ch)
Auto(149,153,157,161ch)
Transfer rates (MAX)11a: 54 Mbps / 11b: 11 Mbps /
11g: 54 Mbps / 11n: 300 Mbps /
11ac: 867 Mbps
Bluetooth
Section
TechnologyBluetooth Ver5.2
Frequency2.402 – 2.480 GHz
Maximum Communication rangeLine of sight approx.10m(32.8ft)
Audio CodecSBC / AAC / LDAC
Multi Profile SupportMulti Profile
ProfileHFP (V1.7) (Hands Free Profile)
SPP (Serial Port Profile)
A2DP (Advanced Audio Distribution Profile)
AVRCP (V1.6) (Audio/Video Remote Control Profile)
PBAP (Phonebook Access Profile)
HDMIConnector TypeType-D
Input ResolutionVGA (640x480p @59.94Hz/60Hz)
480p (720x480p @59.94Hz/60Hz)
720p(1280x720p @59.94Hz/60Hz)
Input Audio Type32K/44.1K/48K/88.2K/96K/176.2K/192K 16/20/24-bit Linear PCM
DSP
Section
Graphics equalizer
BAND13Band
frequency (Hz) (BAND1-13)62.5/100/160/250/400/630/1k/1.6k/2.5k/4k/6.3k/10k/16k
Gain-9/-8/-7/-6/-5/-4/-3/-2/-1/0/1/2/3/4/5/6/7/8/9[dB]
2Way X’Over
HIGH PASS FILTER frequencyThrough/30/40/50/60/70/80/90/100/120/150/180/220/250[Hz]
SLOPE-6/-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency30/40/50/60/70/80/90/100/120/150/180/220/250/Through[Hz]
SLOPE-6/-12/-18/-24[dB/Oct.]
3Way X’Over
HIGH PASS FILTER frequency250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/10k/12.5k
SLOPE-12/-18/-24[dB/Oct.]
Band PASS FILTER frequencyThrough/50/60/70/80/90/100/120/150/180/220/250/300[Hz]
250/300/1k/1.6k/2.5k/4k/5k/6.3k/8k/Through
SLOPE-12/-18/-24[dB/Oct.]
LOW PASS FILTER frequency30/40/50/60/70/80/90/100/120/150/Through[Hz]
SLOPE-12/-18/-24[dB/Oct.]
Position
Front / Rear /Subwoofer Delay0 – 6.1m (0.01m Step)
Gain-8 to 0dB
Subwoofer Level-50 to +10dB
FMFrequency Range87.5MHz – 108.0MHz (50kHz)
(Frequency step)(50kHz)
Usable sensitivity7.3dBf
S/N30dB0.7μV/75Ω
Frequency response30Hz – 15kHz
(±3.0dB)
S/N (dB)70dB (MONO)
SelectivityOver 80dB (±400kHz)
Stereo separation45dB (1kHz)
AMFrequency Range531kHz – 1701kHz
(Frequency step)(9kHz)
Usable sensitivity30dBμ
DABFrequency RangeBAND III: 174.928MHz – 239.200MHz
Sensitivity-100dBm
S/N90dB
DAB
Antenna
Connector
Connector typeSMB
Output Voltage9.8V DC (9V-10.5V allowable)
Maximum Current< 100mA
VideoColor system of external video inputNTSC/PAL
External video input level (RCA jacks)1 Vp-p / 75 Ohms
External video input level (Mini jacks)
Video Input level (RCA jacks)1 Vp-p / 75 Ohms
Video Output level (RCA jacks)1 Vp-p / 75 Ohms
Analog RGB input
AudioMaximum Power Output (Front&Rear)50Wx4
Typical Power Output (Front&Rear)29W x 4 (4Ω,1kHz,10%THD)
Output frequency band20 – 88,000Hz
Preout level (V)5V / 10kOhms
Preout impedance (Ω)=< 300 Ohms
Speaker Impedance (Ω)4-8 Ohms
External audio max input level (RCA jacks)2V / 22kOhms
Digital Audio OutConnector TypeOPTICAL
Output frequency48kHz / 96kHz, 24bit
Linea PCM
GeneralGeneralOperating voltage12V DC Car Battery
SetWeight2.5Kg
Dimensions WxHxD178mm x 50mm x 158mm
Weight1.3 kg
MonitorDimensions WxHxD262mm x 181mm x 52mm
Weight1.1 kg

Additional information

Brand

Kenwood

Dimensions

Height: 181mm
Width: 262mm
Depth: 52mm

Weight

1.1Kg

Impedance

4Ω to 8Ω
