Description
Power and clarity for every journey

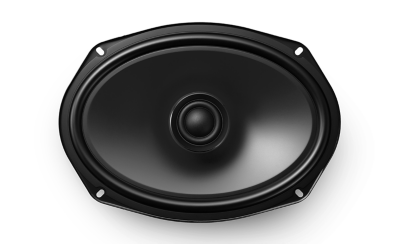

Meet the XS-690GS, our high-grade step-up from your factory 6 x 9″ (16 x 24 cm) speakers. A composite polypropylene cone woofer provides deep and precise bass, and the large 1″ (2.5 cm) silk soft-dome tweeter boasts smooth, detailed sound. You will find yourself taking a longer route back home.
Composite polypropylene cone woofer
A durable polypropylene diaphragm delivers deep bass, while suppressed peaks and dips in the mid and high frequencies ensure smooth integration with the tweeter.

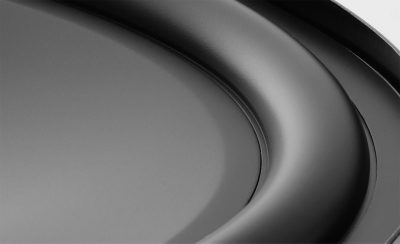

Foam rubber surround
The woofer surround material is made of foam rubber, manufactured with an air-filled matrix structure that is light-weight and durable, providing optimal damping characteristics for responsive bass notes.

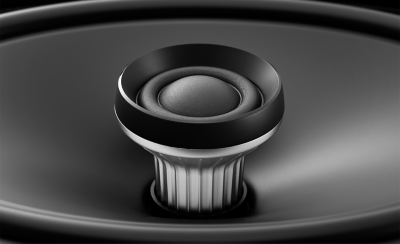

Silk soft-dome tweeter
Based on technology developed for our premium speaker designs, the soft-dome tweeter boasts a flat frequency response and wider dispersion. In addition, its silk diaphragm contributes to natural and smooth sound with good internal loss.

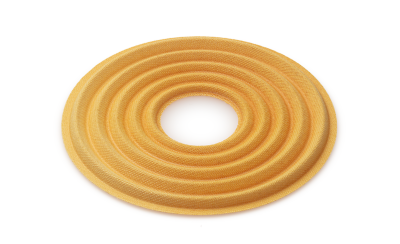

Progressive height rate spider
The acoustically-optimised spider allows for higher power handling and airflow, with a profile designed for more rapid and precise cushioning of the speaker cone.
Dynamic Air Diffuser
The integrated Dynamic Air Diffuser ensures efficient air circulation for smooth cone travel and cooling of the voice coil.

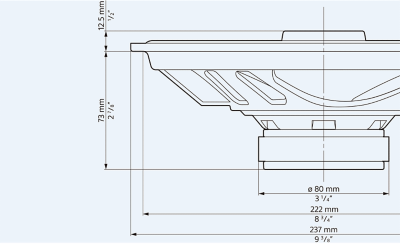

Easy installation
The smaller tweeter chassis and shallow woofer basket decrease physical interference with factory grilles, enabling easy installation in a wider variety of vehicles.
Environment in mind
Our products are not only designed to be stylish but also with the environment in mind. For the individual packaging of the XS-690GS, 98% of the cushions are made of paper materials, and compared to the prior model, printed information has been carefully considered for simplicity and length to reduce printer ink usage by approximately 90%, reflecting Sony’s commitment to reducing environmental impact.
Specifications:
Weight: 1,000g
Type: Coaxial (2-Way)
Size: 6×9″ (160 × 240mm)
Peak Power: 450W
RMS Power: 60W
Rated Power: 50W
Effective Frequency Range: 40-24,000Hz
Output Sound Pressure: 90 dB ±2dB SPL (1W,1m)
Impedance: 4Ω
Woofer Type: Cone
Woofer Diaphragm Material: Composite PP
Woofer Surround Material: Foam Rubber
Woffer Magnet Material: Ferrite
Tweeter Type: Soft Dome
Tweeter Diameter: 1″ (2.5cm)
Tweeter Diaphragm Material: Silk
Tweeter Magnet Material: Neodymium
What’s In The Box: Connection Cables, Woofer Grilles
