Description
SMARTPHONE INTEGRATION
Apple CarPlay – Connect Wirelessly or via USB
A smarter, safer and more fun way to use your iPhone in the car. Apple CarPlay gives iPhone users an intuitive way to make calls, use Maps, and listen to music with just a word or a touch.
Some features, applications, and services are not available in all areas.
For details, see: www.apple.com/ios/feature-availability//#applecarplay-applecarplay
Android Auto™ – Connect Wirelessly or via USB
Android Auto was designed with safety in mind. With larger touch targets, a split-screen interface, and easy-to-use voice actions, it’s designed to minimize distraction so you can stay focused on the road.
*Compatible Android phone and compatible active data plan required.
*Some features and devices may not be available in all countries. Subject to availability.
Wireless Mirroring for Compatible Smartphones
By installing the “CarbitLink-EasyConnection” app, your mobile phone is seamlessly displayed on the receiver’s screen without cable. You can enjoy a variety of apps such as Waze, YouTube™, and Instagram.
*Selected mobile phones only

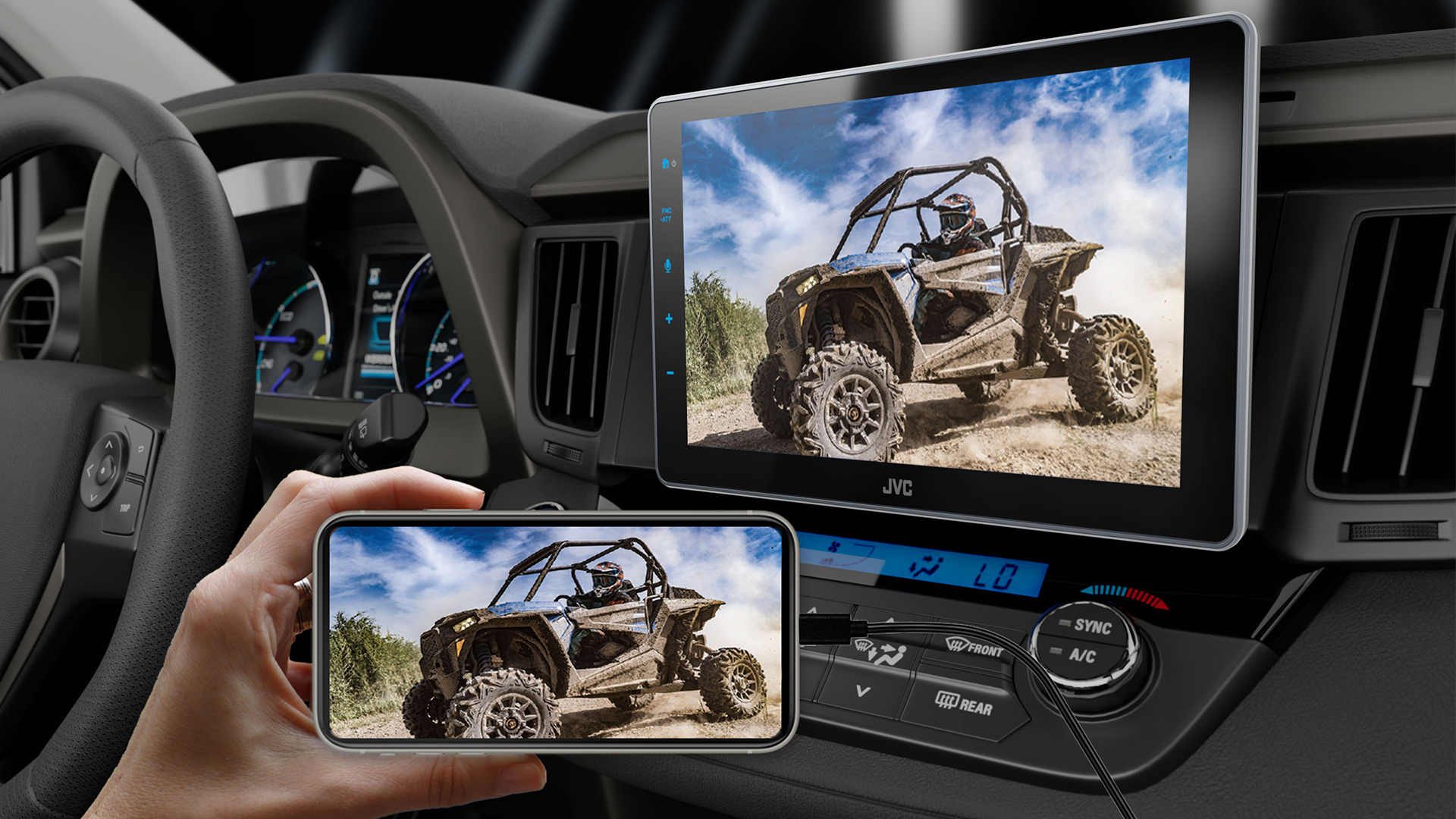

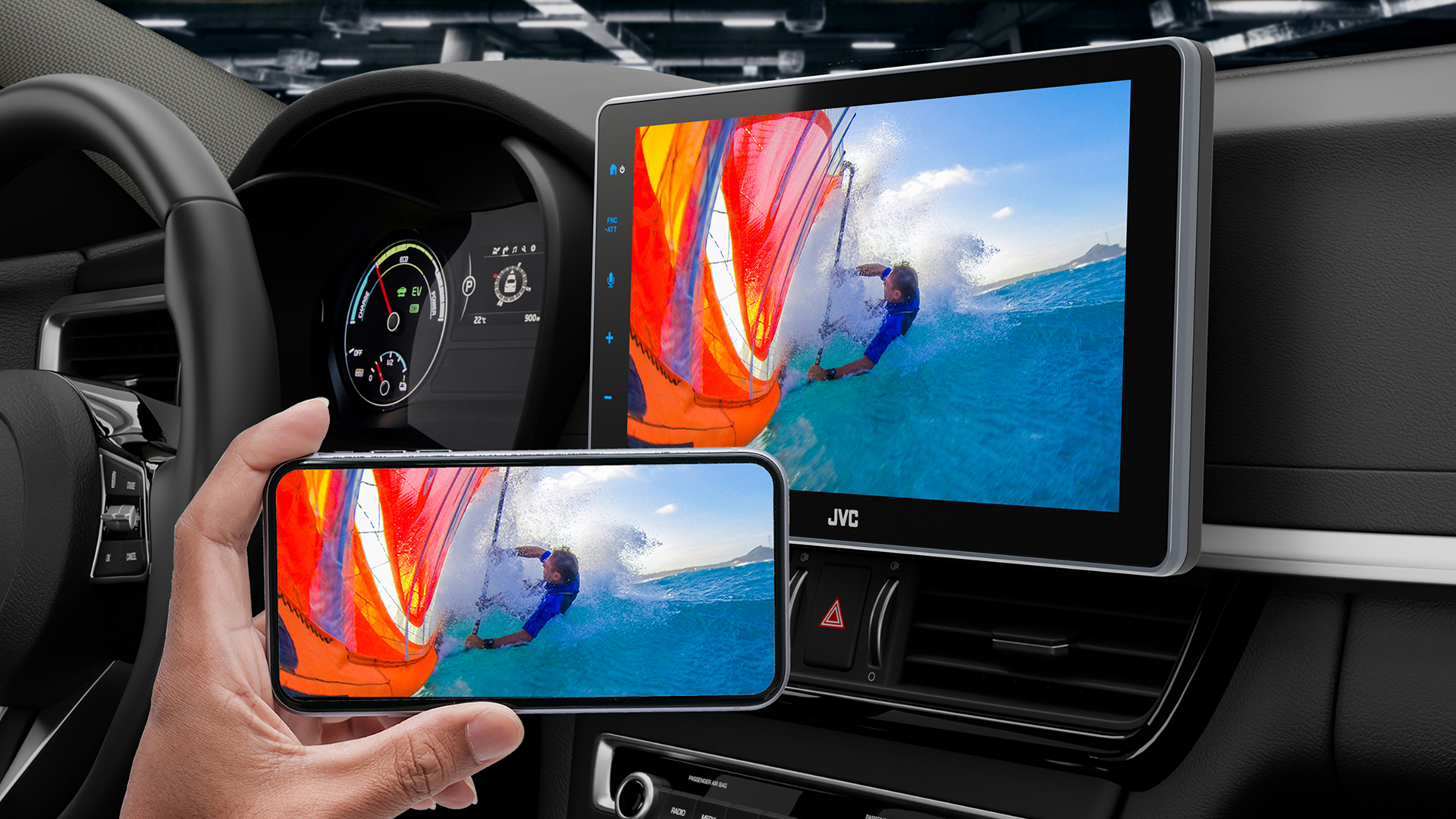

HDMI™ Mirroring for Compatible Smartphones
Display your smartphone screen on the KW-Z900W’s display via an HDMI cable and third party adapter.
*An optional HDMI Cable and smartphone-specific third-party adapter are required (sold separately).
DISPLAY

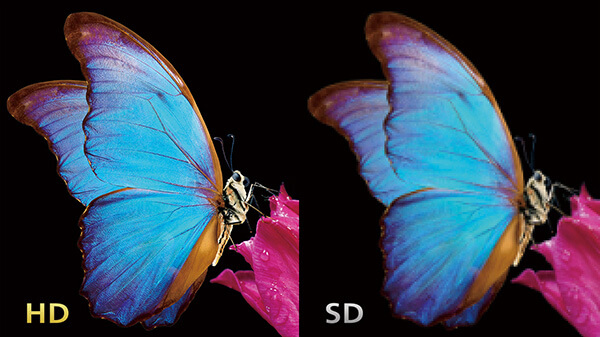

High Definition Display (1280 x 720)
The large-screen 9.0” HD display is about 2.4 times higher resolution than the conventional WVGA panel. With this display, jagged edges are eliminated in the displayed image, providing sharp and vivid images. In addition, the color development increases, and the individual colors of the image become clear, so you can enjoy high-definition images.

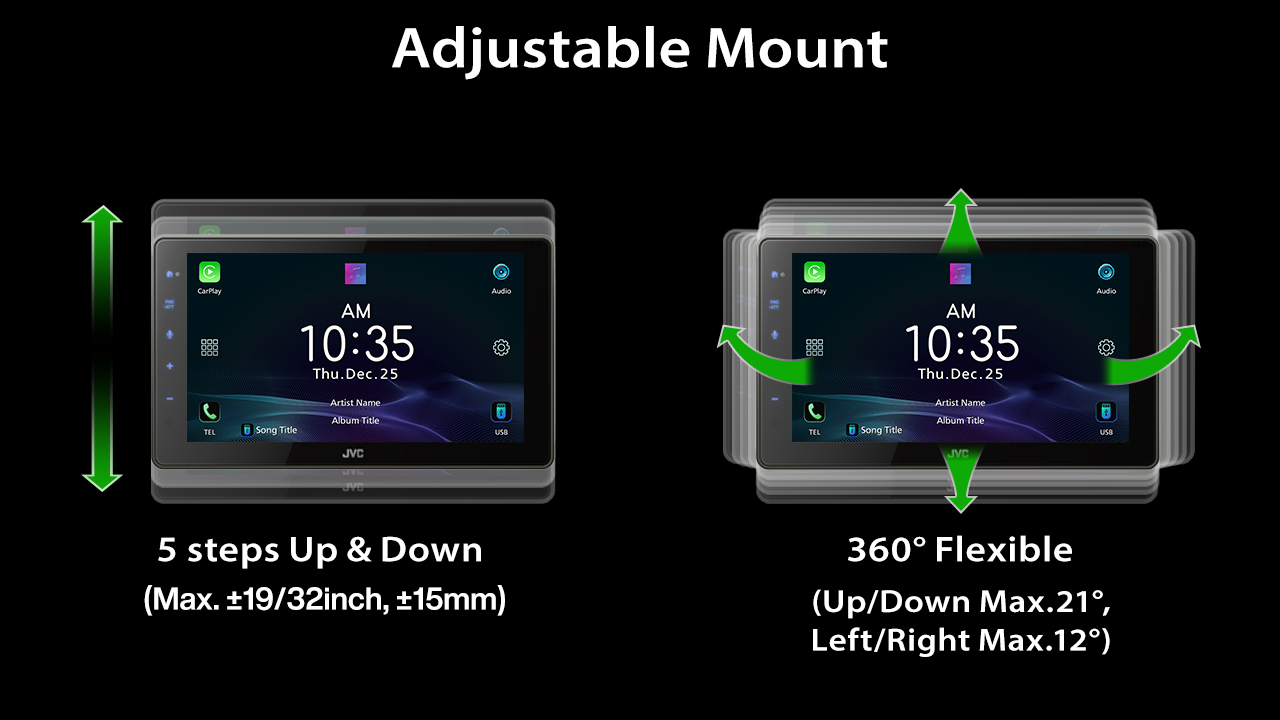

360°Fully Adjustable Floating Mechanism
The fully adjustable display allows drivers to rotate and tilt the screen 360, offering easy angle adjustments with tilt, left and right motion for optimal viewing.
SAFE DRIVING

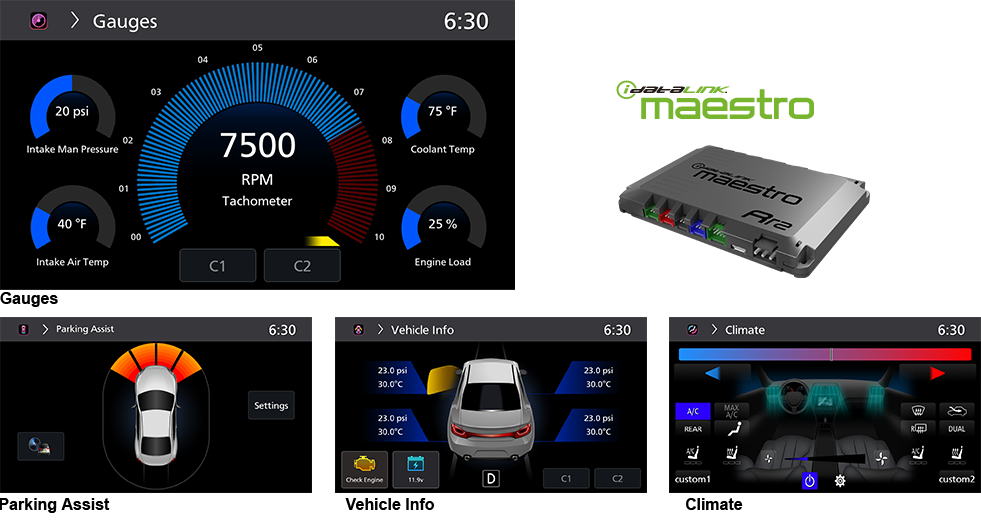

iDatalink Maestro – Advanced Vehicle Integration
iDatalink Maestro RR/RR2 (sold separately) enables the retention of the factory steering wheel audio controls, factory amplifier, secondary displays, and can even display vehicle information (performance data, climate controls, battery voltage, etc.) when connected to compatible vehicles.
*Available features may vary depending on the vehicle. The iDatalink Maestro RR is sold separately by Automotive Data Solutions. To find an authorized dealer please visit http://maestro.idatalink.com/

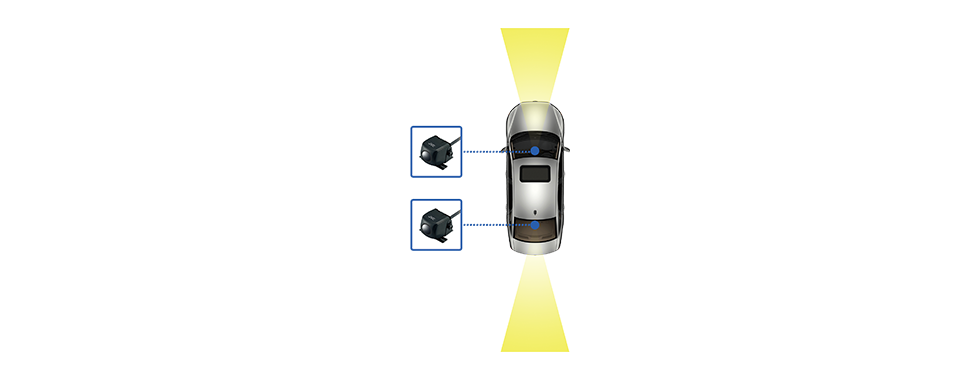

2-Camera Inputs
Enable users to add a rear facing camera and additional front facing camera (sold separately).
Additionally this receiver is equipped with a front camera left/right switching function.
HD Rear Camera Input
An optional High Definition camera can be connected to the receiver’s rear camera input, displaying the image in true 1280 x 720 (720P) High Definition on compatible receivers.
SOUND OPTIMIZATION

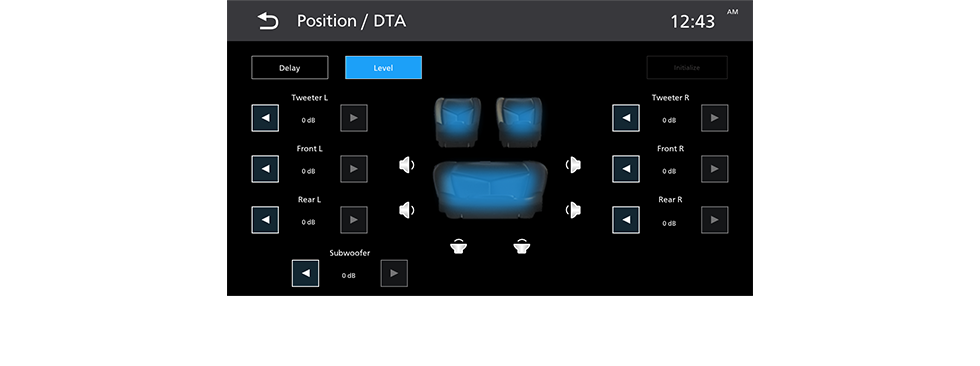

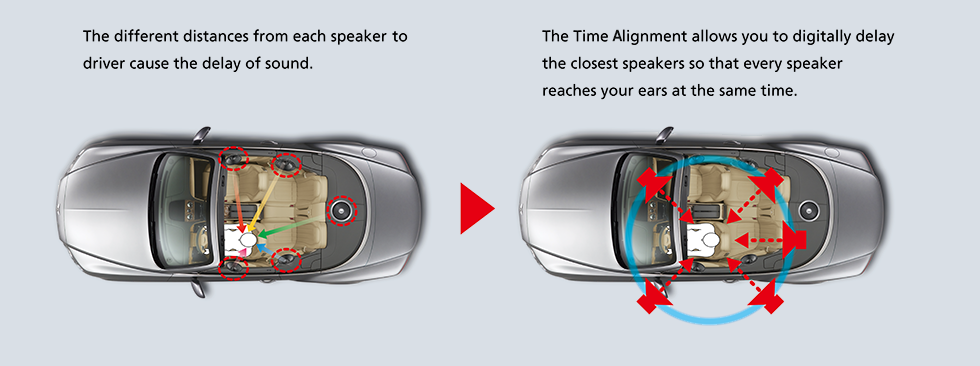

Time Alignment
By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

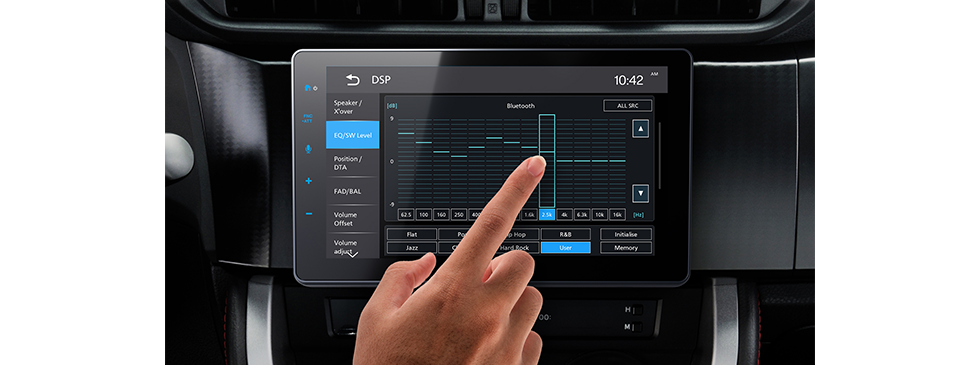

13-Band Equalizer
Use the 13-Band Equalizer to manually adjust the sound to your taste.
General

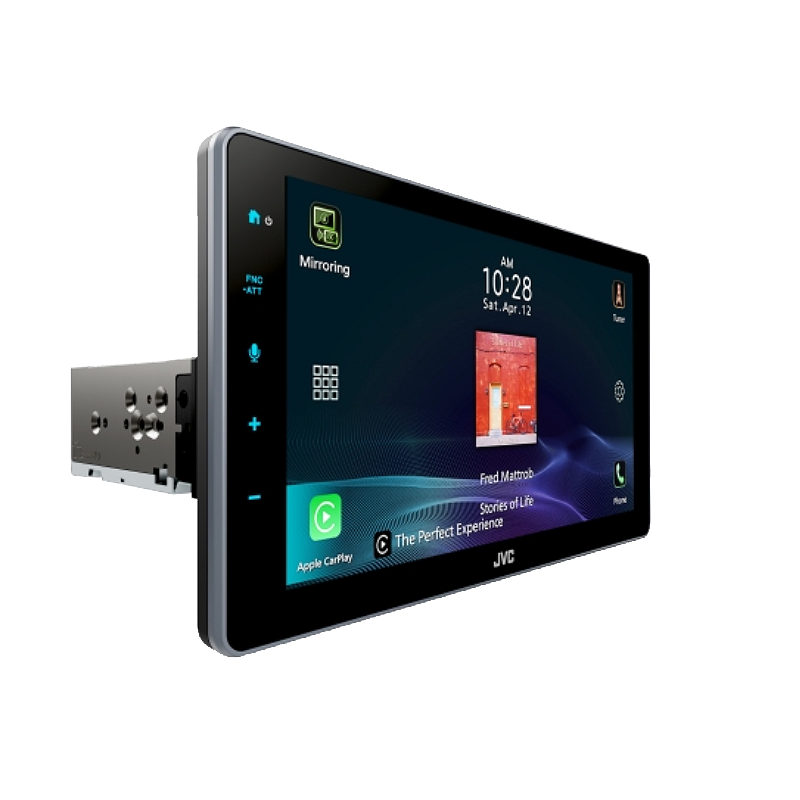

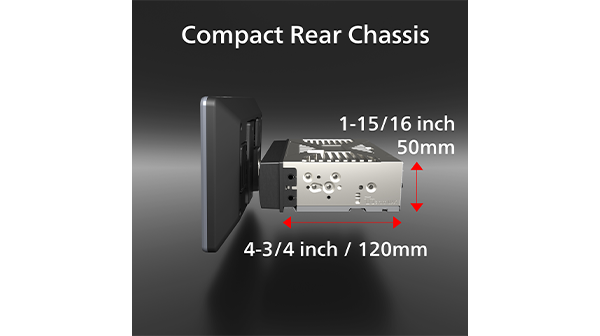

Compact Rear Chassis
Despite a large 9″ display, our unit stands out with its remarkably compact rear chassis, ensuring hassle-free installation and optimal cable management.
High Current 2.1A Charging
Rapidly charge your smartphone using the USB port, with up to a maximum of 2.1A.
*Compatibility depends on the smartphone.
3.0V High-Voltage 3 Pre-Outs
Equipped with three RCA terminals for pre-outs with 3.0V high voltage. Increasing the output voltage from the pre-outs helps reduce transmission noise and distortion when connected with an external amplifier.
Steering Wheel Remote Control Ready
Factory steering wheel control functions can be retained with a third-party adapter (sold separately).
Learning Steering Remote Function
No need for a third party adapter for most Japanese/Korean cars. Click here for details.
Specifications:
Monitor
- High Definition Monitor: Yes
- Screen Size: 9″ HD Screen
- Touch Panel: Capacitive
- Touch Panel Surface: Anti Finger Print, Anti Glare
- Key Illumination Color: Blue
- Dimmer: Yes
- Multilingual Display: Yes (English / Spanish / French / Chinese (Simplified) / Chinese (Traditional) / Thai / Turkish / Arabic / Persian / Malaysia / Indonesia)
Media Playback
- MP3 Compatible with Tag: USB
- WMA Compatible with Tag: USB
- WAV Compatible with Tag: USB
- AAC Compatible with Tag: USB
- FLAC Compatible with Tag: USB
- H.264 Compatible: USB
- WMV Compatible: USB
- MPEG 1/2 Compatible: USB
- MPEG 4 Compatible: USB
- MKV Compatible: USB
Bluetooth Control
- Built-in Bluetooth[1]: Yes (Version 5.3, Wired-Mic included)
- Hands Free Call: Yes (HFP1.6)
- 2 Phones Full-Time Connection: Yes
- Audio Streaming & Control (A2DP, AVRCP): Yes
- Supported Audio Formats: AAC / SBC
- Voice Dialing (voice recognition compatible mobile phone required): Yes
- Phone Book Access Profile (PBAP): Yes
Wi-Fi Control
- Built-in Wi-Fi: Yes
Android Control
- Android Auto[2]: Yes (via Wi-Fi or USB)
- Mirroring for Android: Yes (via Wi-Fi or USB)
iPod/iPhone Control
- Apple CarPlay[3]: Yes (via Wi-Fi or USB)
- Mirroring for iPhone: Yes (via Wi-Fi or USB)
USB
- USB Port: x 1 Type-A (USB2.0 High Speed)
- Position: Rear
- USB Power Supply: 2.1A (BC1.2)
Radio Tuner
- Radio Data System: Yes
- Preset Stations: 20(FM:15ch, AM:5ch)
- Auto Memory Entry: Yes
- FM
- Frequency Range: 87.5-108.0MHz
- AM
- Frequency Response: 531-1701kHz
Audio
- Maximum Power Output (Front & Rear): 50Wx4
- Full Bandwidth Power (Front & Rear): 22W x 4 (at less than 10% THD)
- EQ: Yes (13-Band Graphic EQ)
- Preset EQ: Yes (7Preset + 1User)
- Bass Boost: Yes
- High-Pass Filter/Low-Pass Filter: Yes/Yes
- 3-Way X’over: Yes
- Time Alignment: Yes

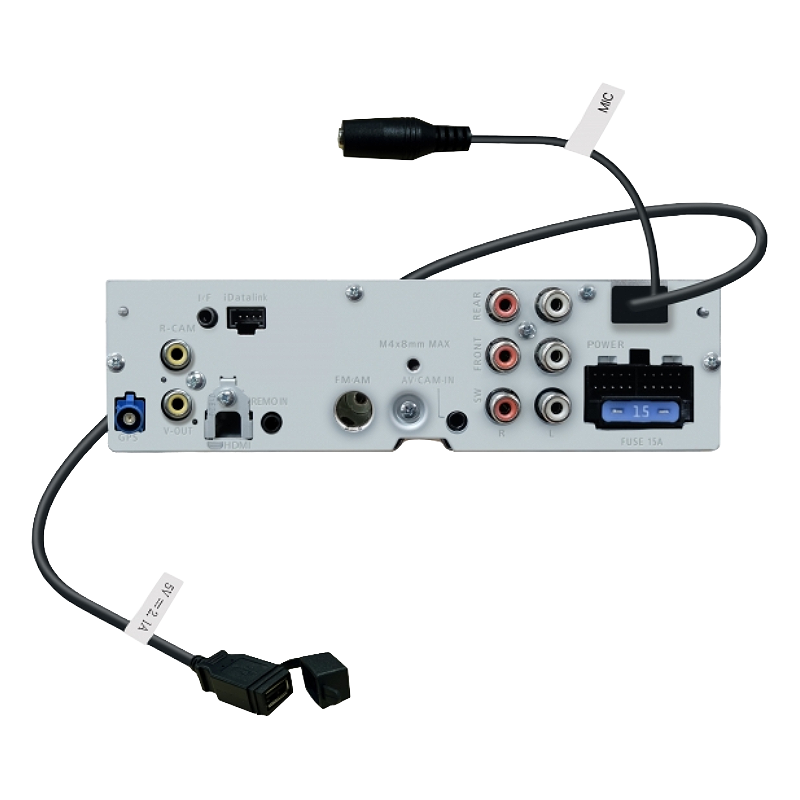

Inputs and Outputs
- AV Input: mini jack (AV-IN or Camera-IN switchable) x 1
- Video Out: RCA x1
- HDMI Terminal: Yes
- HD Camera Input: Yes (Only for Rear Camera In)
- Rear view camera Input: Yes
- Line Output Terminals: 3 Pairs (Front + Rear + Subwoofer)
- Pre-output Level/Impedance: 3V
- Subwoofer Output with Level/Frequency Control: Yes
General
- iDatalink Maestro Ready: Yes (RR, RR2)
- Wireless Remote Control Type: Optional (RM-RK259)
- Steering Remote Control Ready: Yes
- Learning Direct OEM Remote: Yes
- Dimensions (W x H x D)
- Chassis: 7″ x 1-15/16″ x 4-3/4″ (178 x 50 x 120 mm)
- Monitor: 9-7/16″ x 5-1/2″ x 1-1/4″ (240 x 140 x 31 mm)
- Weight
- Chassis: 2.1 lbs (0.94kg)
- Monitor: 1.5lbs (0.66kg)
- Unit weight in individual package: 5.38lbs (2.44kg)
