Description

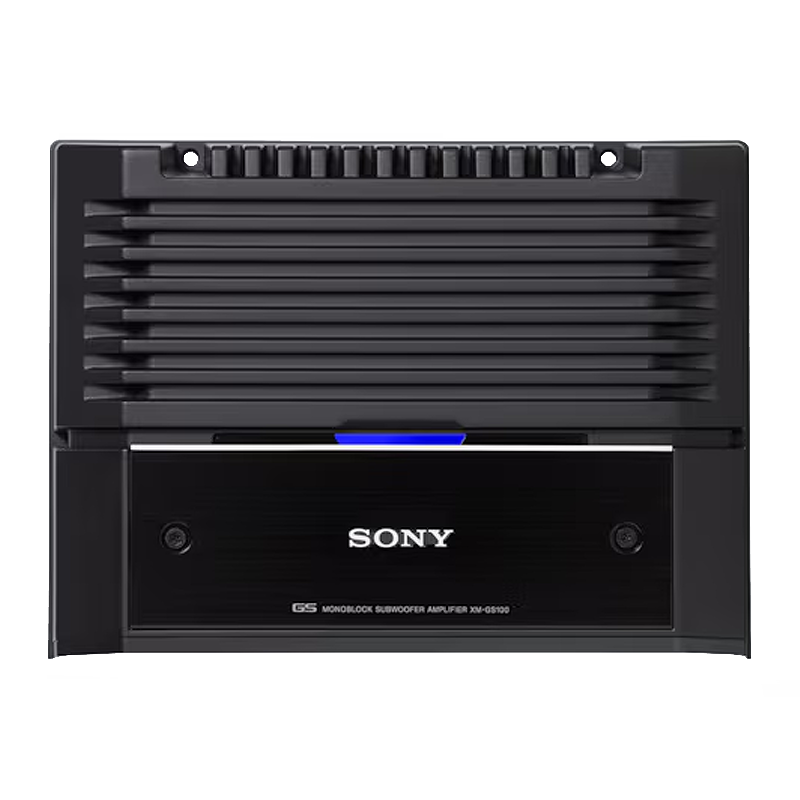

The Sony XM-GS100 is a powerful, compact Class D mono amplifier designed to drive subwoofers, offering up to 600 watts RMS at 4 ohms or 1100 watts max power at 2 ohms. Key features include a Dynamic Distortion Suppressor for clear bass, an Active Thermal Control system to maintain stable performance, a variable low-pass filter for sound customization, and both preamp and speaker-level inputs for versatile system integration.

Key Features & Benefits

High Power Output:
Delivers robust bass with up to 600 watts RMS at 4 ohms and 1100 watts max at 2 ohms, ensuring powerful sound from your subwoofer.

Class D Design:
A Class D amplifier offers high power output in a compact and efficient package.

Dynamic Distortion Suppressor:
Enhances clarity by suppressing distortion, resulting in clearer and more defined bass.

Active Thermal Control:
An integrated system regulates the amplifier’s operating temperature, providing stable, long-term playback even at high volumes.

Versatile Sound Tuning:
Includes a variable low-pass filter (50-300 Hz) and a variable bass boost (0-10 dB at 40Hz) to optimize the sound for your specific audio system.

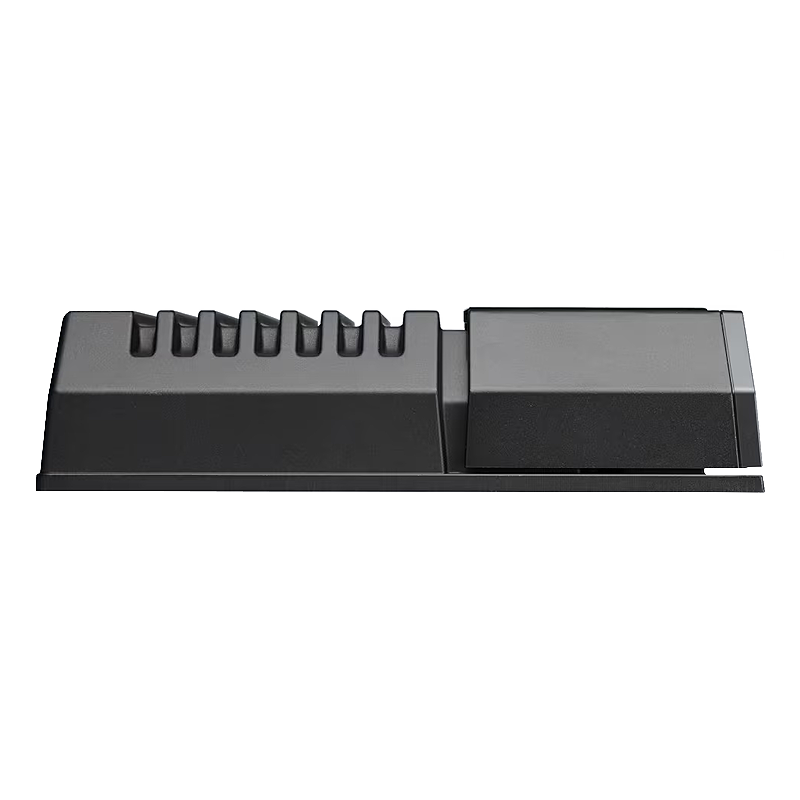

Compact and Flexible Design:
Features single-sided connections and a compact size, allowing for multiple flexible mounting options within a vehicle.

Connectivity

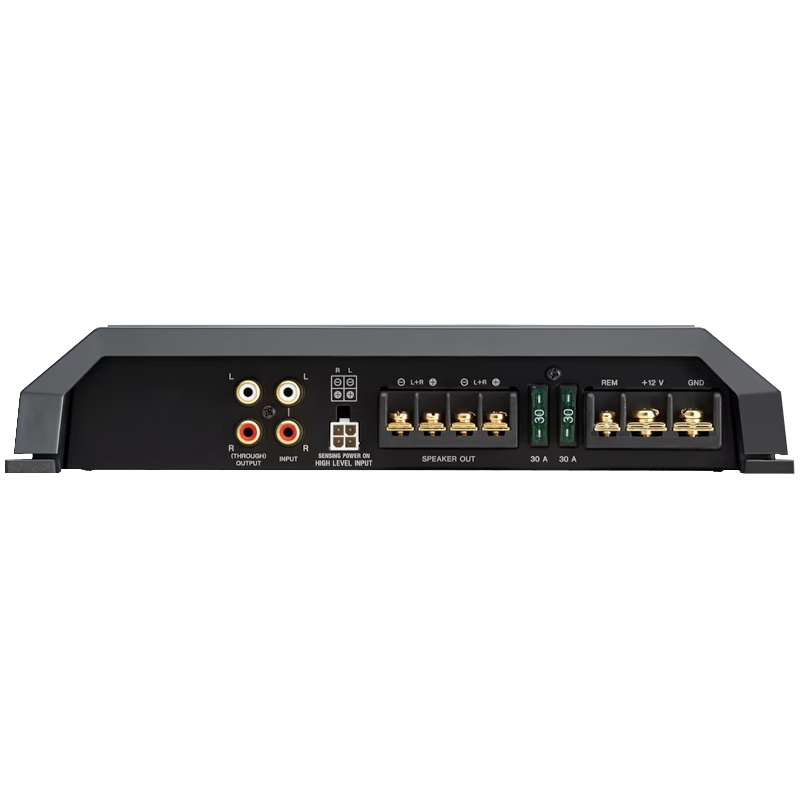

Input Options:
Supports both high-level (speaker-level) inputs and low-level (preamp) inputs, allowing it to connect to factory head units or aftermarket radios.

Line Out (Through):
Provides a through signal, enabling you to pass the audio signal to another amplifier, such as a multi-channel amplifier for your other speakers.
